DO Oxygen meter in water

Description

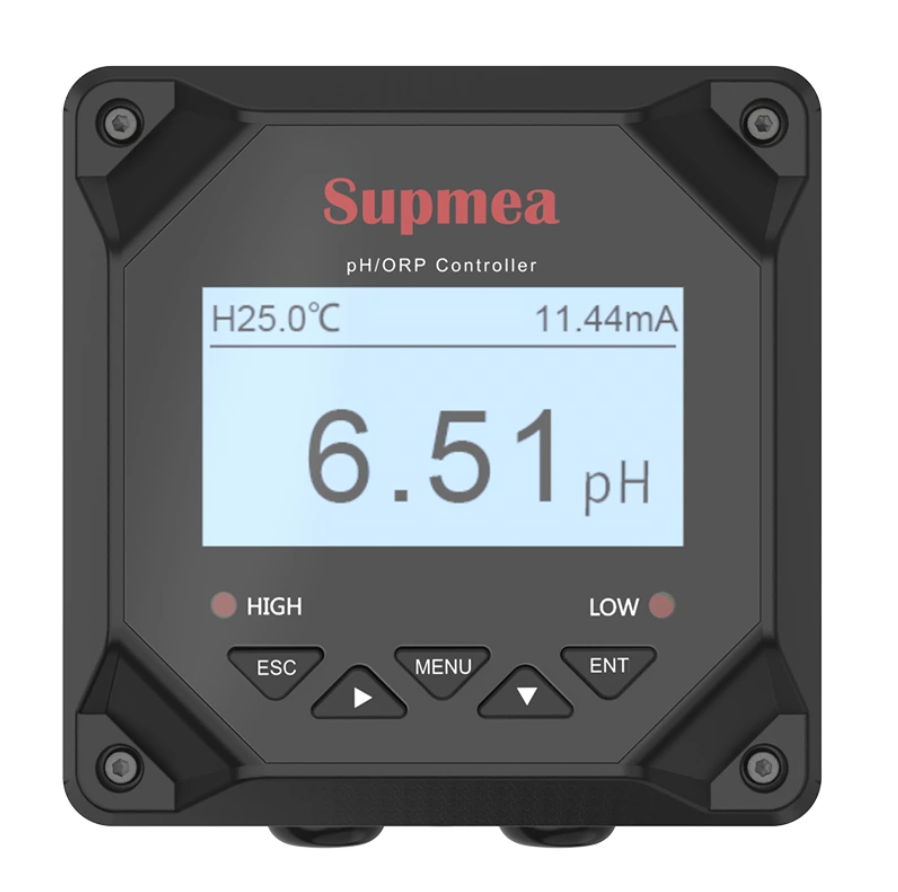

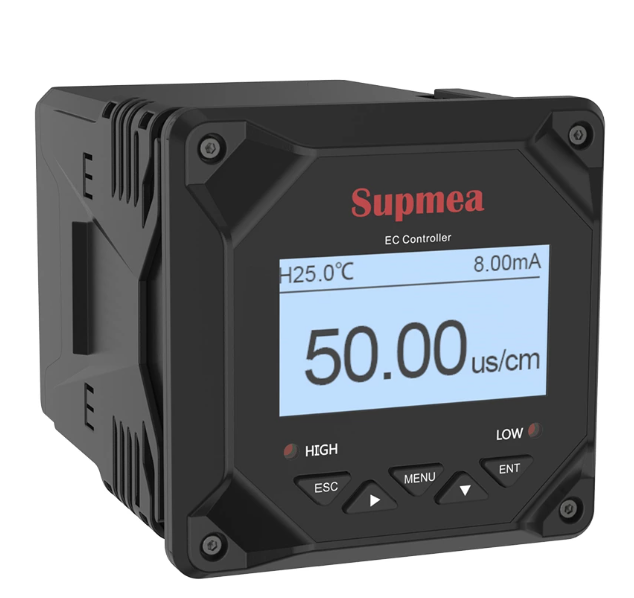

SUP-DC2000 Digital analyzer monitor +SUP-DO7017 Oxygen meter

DO Optical sensor - Measurement of oxygen in water

Specification Product Digital analyzer monitoring Model SUP-DC2000 Dimension 100mm*100mm*150mm Range pH: (0-14)pH ORP: (-2000-2000) mV DO: (0-40) mg/L TDS: (0-600) mS/cm Trip

Characteristics
Range: pH: (0~14)pH
ORP:(-2000-2000)mV
DOES:(0-40)mg/L
TDS: (0~600)mS/cm
Turbidity: (0~4000)NTU
Suspended solids: (0~120000)mg/L

Output signal: 4~20mA; Relay; RS485

Power supply: AC：(100～240)VAC; DC：24VDC (optional)

+

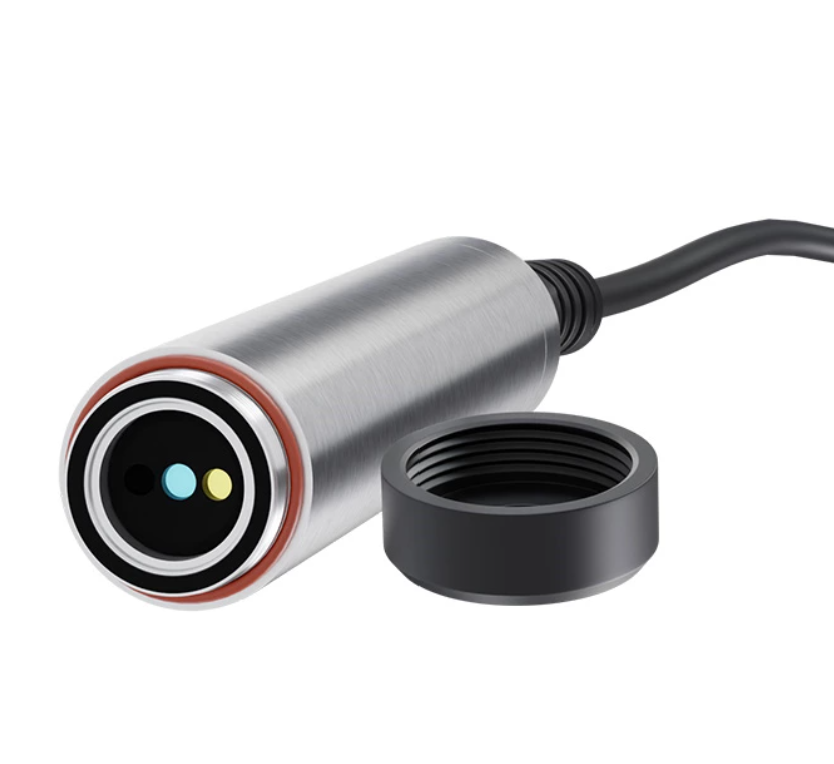

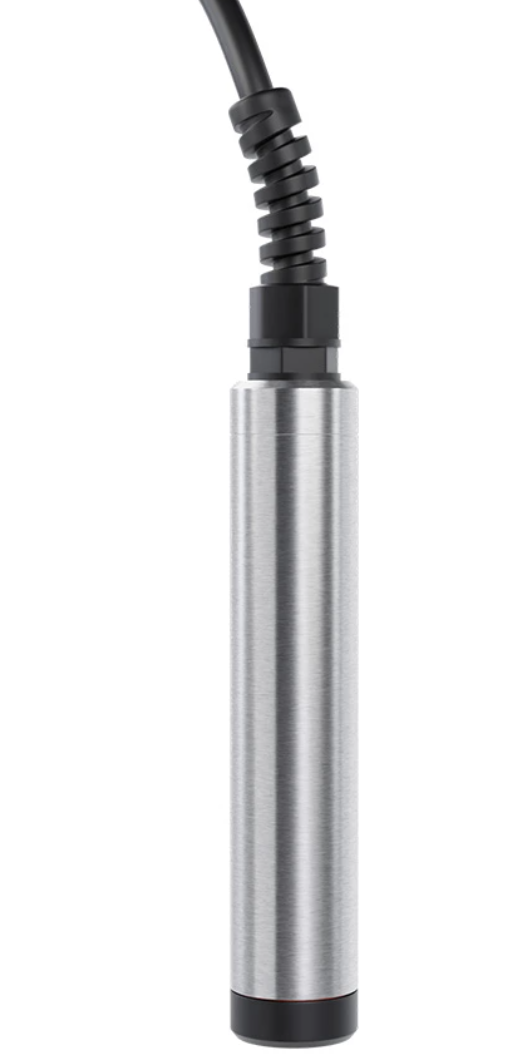

Optical meter suitable for fish industry SUP-DO7017 Oxygen meter

Characteristics
Range: 0.00 to 20.00 mg/L
Accuracy: 3 %
Resolution: 0,01
Signal interface: Modbus RS-485

Protection: IP68/NEMA6P

Temperature: -15°C to + 60°C

Cable length: 10m

The area of use                                                                                                                                                                                        - Aquaculture
- Reverse osmosis
- Process control
- Desalination of seawater
- Waste treatment
- Food production
- Plating
- Power plants
- Laboratories
- Print shop
- Aquaculture
- Agriculture
- Environmental studies
- Medical
- Boilers
- Cooling
