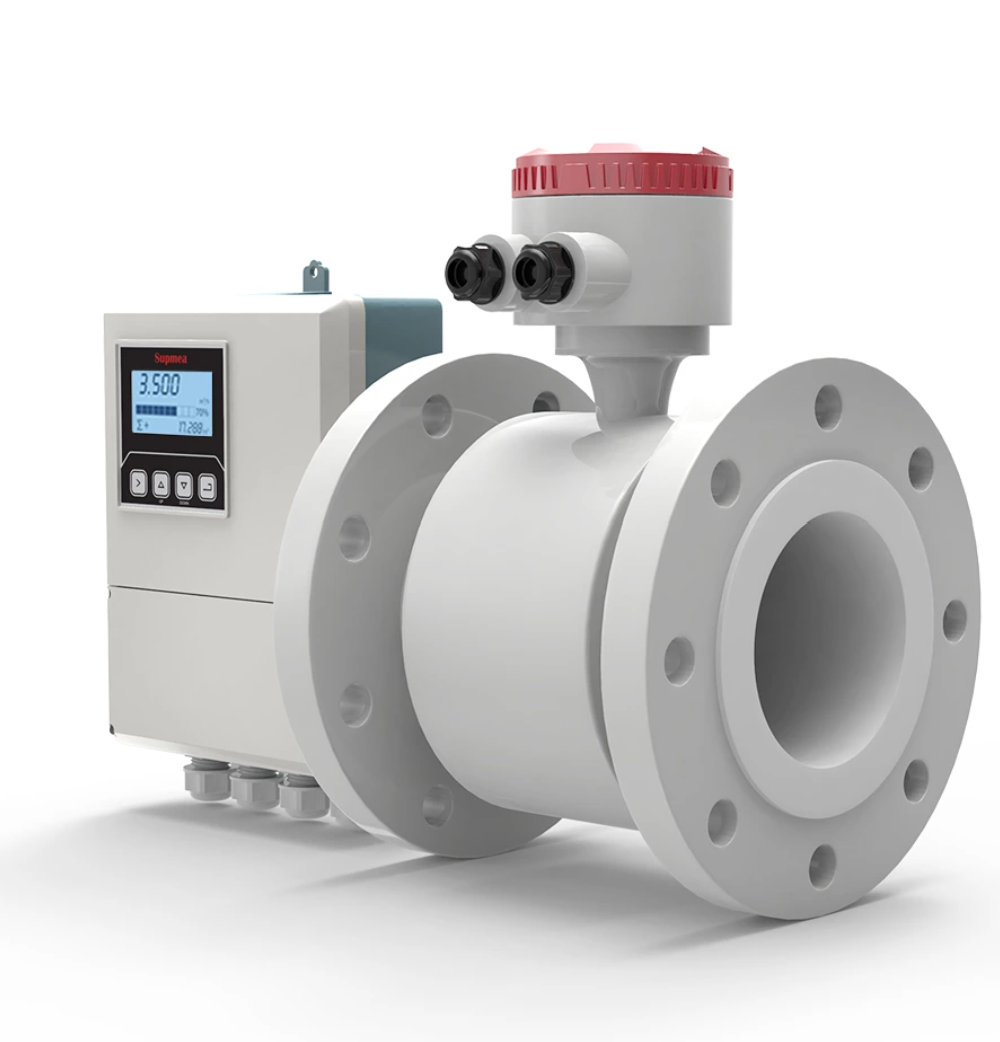

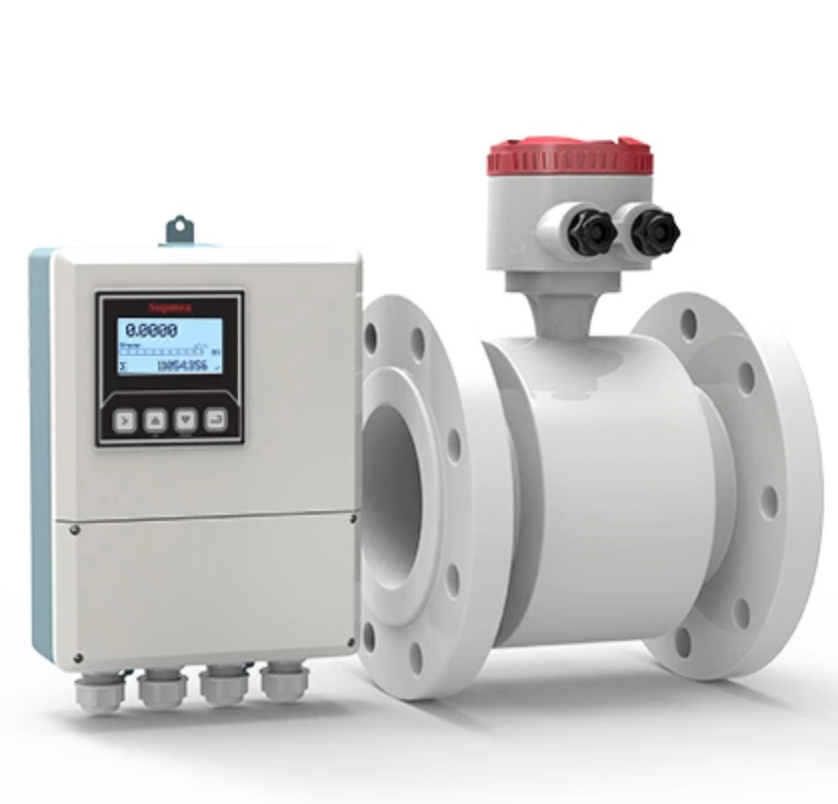

Electromagnetic water flow meter can only be used to measure the flow of conductive liquid, which is widely used in water supply, sewage water measurement, industrial chemical measurement, etc. The remote type is with high IP protection class and can be installed in different places for the transmitter and converter. Output signal can be pulsed, 4-20mA or with RS485 communication.
Water flow meter
– Remote controlled
– Pipe size: DN65
– Coating: PTFE
– Electrode: SS316L
– Mounting: Flange
– Medium: Water
– Accuracy: 0.5 %
– Output: 4-20mA and RS485
– Voltage: 220VAC
Characteristics – Accuracy: ±0.5 % (flow velocity > 1 m/s)
– Reliable: 0.15 %
– Theoretical value: Water: Min. 20μS/cm; Other liquid: Min. 5μS/cm Recommended value: ~30μS/cm
– Flanges: ANSI/JIS/DIN DN15… 1000
– Degree of protection: IP68
Introduction
External water flow meter is a device used to measure the flow rate of water in a pipeline or other water system. This type of meter is designed to be installed at a distance from the point of measurement, enabling remote monitoring of water consumption and flow rates.
External water flow meters are often used in industrial and commercial applications, where accurate measurement of water consumption is important for billing and other purposes. They can also be used in residential environments to monitor water consumption and identify leaks or other problems.
One of the most important advantages of an external water flow meter is that it allows for real-time monitoring of water use. This can help identify leaks or other problems early, allowing for quick repairs and reducing the risk of water damage or other problems.
Another advantage of external water flow meters is that they can be integrated with other systems, such as building automation systems or water management software. This allows for more efficient management of water consumption, as well as improved tracking and reporting of water consumption.
When choosing an external water flow meter, it is important to consider factors such as accuracy, reliability and ease of installation. It is also important to select a meter that is compatible with the specific type of water system being monitored.
Size: DN 15 – DN 1000, the price will vary according to the size.
We have several in stock.
Shipping cost is additional.
Contact.
